CUSTOM L6 - INDVIDUAL COIL PACK BRACKET:

CUSTOM L6 - INDVIDUAL COIL PACK BRACKET:

INDIVIDIAL COIL PACK, BRACKET.

$ 65.99 Unavailable Back

THIS IS A CUSTOMIZED COIL BRACKET FOR THE DATSUN L6 / 240Z - 280Z.

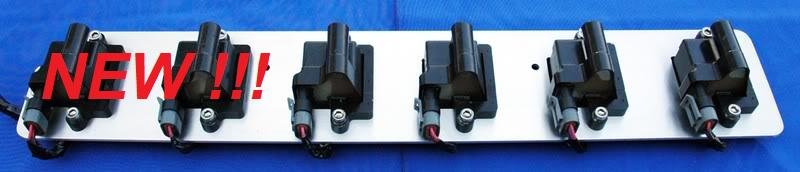

THIS BRACKET HOLDS CHEVEROLET COIL PACKS ( PRT# 12558693 ) SOURCED FROM THE 2000 5.3L SUBURBAN. THE BRACKET HOLDS 6 INDIVIDUAL COILS THAT INCORPORATE THIER OWN IGNITORS. THESE COILS CAN THEN BE FIRED BY MOST EMS SYSTEMS ( WOLF V3-V4, MEGASQUIRT, HALTECH, MOTEC, AND J&S EMS SYSTEMS).

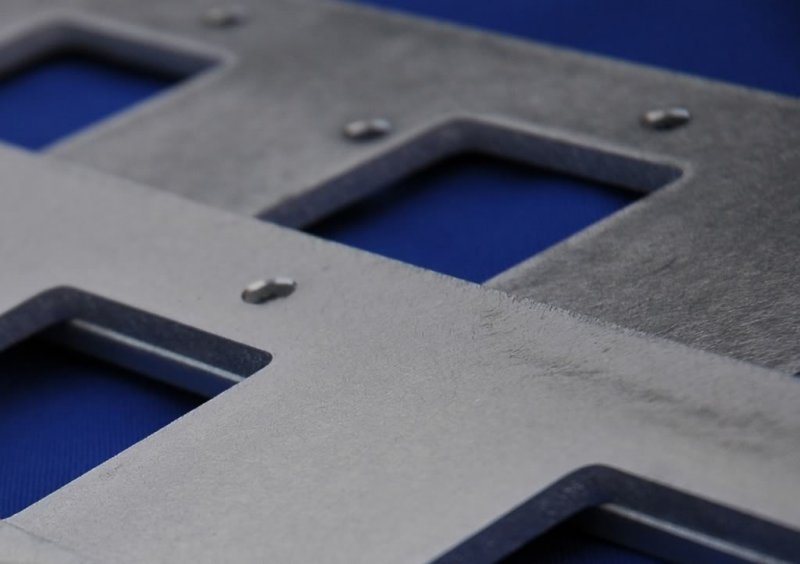

THE BRACKET IS MADE OF 3/16" 6061 ALUMINUM, AND BOLTS TO THE SIDE OF THE L6 BLOCK USING THE SMALL THREADED HOLES THAT ARE LOCATED FOR THE HEATER HOSE MOUNTS. *(note: the heater hose will need to be re-routed to use this bracket. )

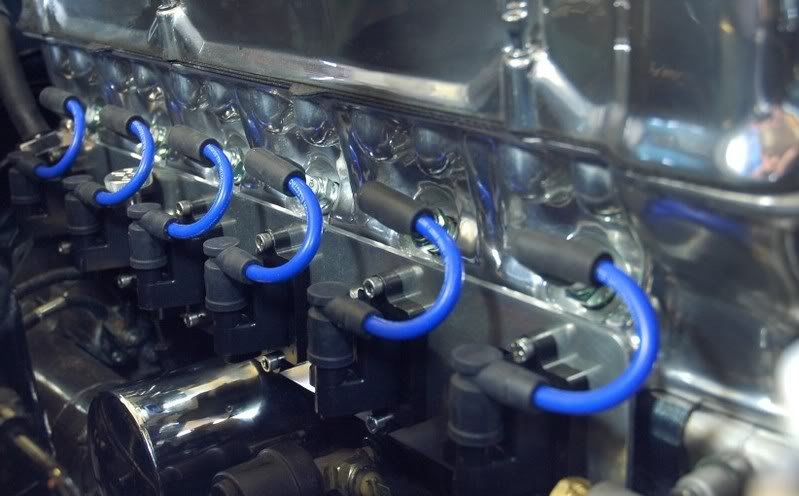

WIRES ARE AVAILABLE BY MAGNECOR COMPETITION WIRES. THESE WIRES ARE SPECIALLY MADE FOR THIS KIT. WIRES ARE AVAILABLE IN 3 COLORS, AND 3 SIZES. MAGNECOR PART NUMBERS WILL BE SUPPLIED UPON REQUEST... CUSTOMERS CAN THEN CONTACT MAGNECOR DIRECTLY TO PURCHASE.

**COILS ARE NOT INCLUDED, AND ARE FOR PHOTO PURPOSE ONLY!!

***COIL WIRING SCHEMATIC SUPPLIED WITH PURCHASE.
