A: OER- INDIVIDUAL PARTS (#1

O.E.R. SIDEDRAFT CARBURETORS: > O.E.R.- Replacement parts (SK/OER): > A: OER- INDIVIDUAL PARTS (#1 - #60 )

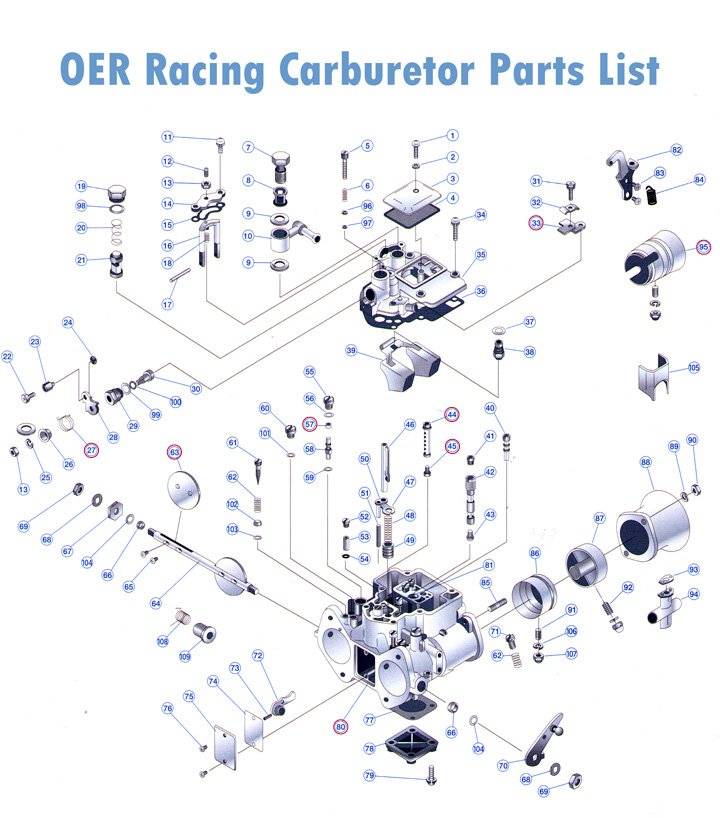

A: OER- INDIVIDUAL PARTS (#1 - #60 )

O.E.R PERFORMANCE CARBS.

Back
Quantity:

ALL O.E.R. CARB PRODUCTS ARE SPECIAL ORDER FROM JAPAN... PLEASE ALLOW 2-3 WEEKS FOR DELIVERY/ SHIPPING WILL BE QUOTED ONCE YOUR ORDER HAS BEEN RECIEVED, AND WE CAN EVAULATE.

List No. / Item No. / Name /     Unit Price
-----------------------------------------------
1      1      Jet cover screw    $1.47
2      1      Jet cover washer   $1.07
3      1      Jet cover 500     $10.70
4      1      Jet cover gasket   $3.10
5      1      Pump adjust screw  $7.50
6      1      Pump stopper spring $2.25
7      1      Fuel union bolt     $9.80
8       1      Fuel filter        $5.60
9      2     Fuel union gasket   $2.20
-----------------------------------------------
10            Fuel union / LH    $35
10            Fuel union / RH     $35
10            Fuel union / Dual   $38
-----------------------------------------------
11     2      Screw jet cover    $2.10
12     1      Float adjust screw  $2.75
13     1      Float adjust nut    $1.80
14     1      Float adjust plate   $3.99
15     1      Float adjust plate gasket  $3.10
16     1      Saddle              $9.80
17     1      Float-pin          $1.60
18     1      Float adjust spring $1.90
19     1      Screw plug       $7.80
20     1      Starter valve spring $2.10
21     1      Pump plunger     $24.50
22     1       Starter terminal screw $2.10
23     1    Cable clamp         $1.60
24     1      Starter terminal circlip $.90
25     1      Spring washer       $.70
26     1      Spring retainer       $5.40
----------------------------------------------
27     1      Spring LH          $5.50
27 　       Spring RH 　
--------------------------------------------------
28     1       Cold starter lever     $14.99
---------------------------------------------------
29     1      Nut (Screw plug)     $12.99
29     1      Nut (Chokeless plug)  $13.80
---------------------------------------------------
30     1      Cold start cam LH     $13.55
30           Cold start cam RH
---------------------------------------------------
31     1     Cable bracket assembly $14.50
32     1      clamp arm           $14.50
---------------------------------------------------
33     1     Wire blacket R        $14.50
33 　       Wire bracket L
---------------------------------------------------
34     6     Top cover screw      $1.10
35      1     Top cover          $58.00
36     1     Top cover gasket     $10.00
37     1     Needle valve gasket    $1.30
38     1      Needle valve 1.8mm    $27.00
39     1    Float assembly       $38.00
40     2     Pilot jet            $6.50
41     2     Air jet             $6.50
-----------------------------------------------
42     2     Emulsion tube type S   $25.00
42     2     Emulsion tube type R   $25.00
42     2     Emulsion tube type T   $25.00
-----------------------------------------------
43      2     Main jet           $6.50
44      1     Starter pipe 　
45     1     Starter jet 　
46     1     Pump rod           $16.00
47     1     Pump plate          $3.20
48     1     Pump spring       $3.75
49     1     Pump plunger        $13.00
50     1     Pump rod stopper     $8.00
51     1     Stopper spring       $2.00
52      2     Pump weight plug     $2.00
53     2     Pump demand weight  $2.00
54     2     Pump Ball          $1.35
55     2     Pump jet plug       $3.50
56     2     Pump jet O-ring      $2.00
--------------------------------------------
57 　　    Pump nozzle fileter 　
--------------------------------------------
58     2     Pump jet (Pump nozzle) $9.00
59     2     Pump jet gasket      $1.20
60     2     Vacuum take off plug   $3.50
