B: O.E.R. INDIVIDUAL PARTS ( #61 - #109 )

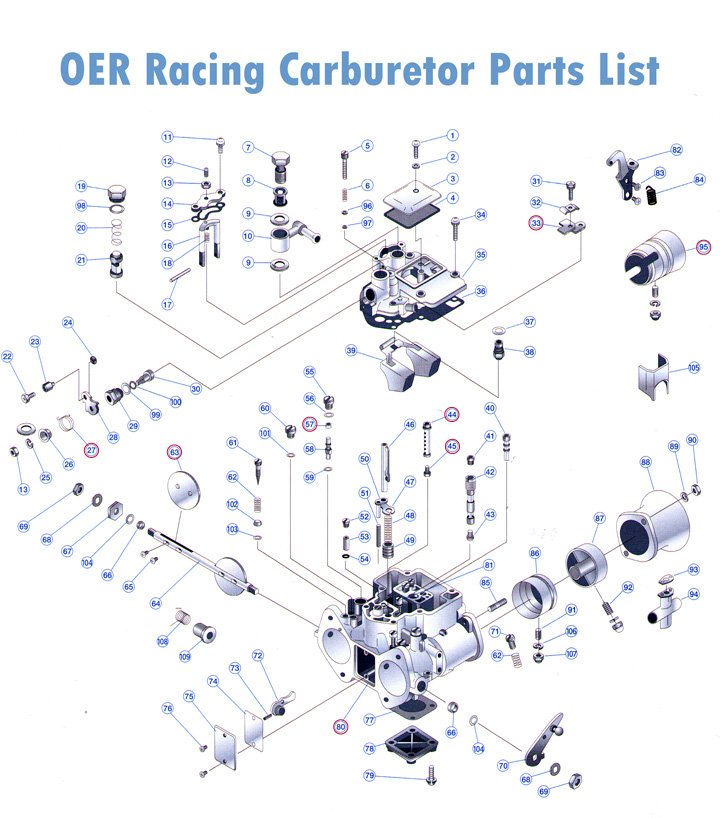

O.E.R. INDIVIDUAL CARB PARTS.

Back
Quantity:

PART# / # REQ'D /    ITEM#   /     PRICE
-----------------------------------------------

61      2      Idle mixture screw    $5.00
62      2      Idle screw spring     $2.00
63      2    Throttle valve 　
------------------------------------------------
64      1      Throttle shaft-45mm  $37.00
64      1      Throttle shaft-47mm  $42.00
64      1      Throttle shaft-50mm   $46.00
-------------------------------------------------

65      4      Throttle calve screw  $1.20
66      2      Shaft seal         $2.00
67      1      Shaft washer       $2.00
68       2      Lock washer        $.80
69      2      Shaft nut          $1.20
-------------------------------------------------

70      1       Throttle lever       $12.00
70 1       Throttle lever L     $27.00
71      1       Screw throttle adjust $4.50
72      1       Pump lever        $22.00
73      1       Spring pin         $1.05
74      1    Pump cover plate gasket $1.20
75      1       Pump cover plate    $9.00
76      2       Screw           $1.00
77      1       Bottom cover gasket $2.50
78      1       Bottom cover       $7.50
79      4       Screw bottm cover   $.75
80 　　      Body assembly
81      1       Exhaust bleed       $7.50
-------------------------------------------------
82     1       Throttle lever bracket  $8.50
82      1       Throttle lever bracket L $12.00
----------------------------------------------------

83      2       Screw bracket        $2.00
84 1        Throttle lever spring    $4.00
---------------------------------------------------
85      4       Stud bolt           $2.00
85      4       Screw- 50mm        $2.00
---------------------------------------------------

86      2       Outer venturi- 45mm/36mm
86      2       Outer venturi- 47mm/38mm
86      2       Outer venturi- 50mm/43mm
--------------------------------------------------

87       2       Auxiliary (inner) venturi $28.50
--------------------------------------------------

88      2       Air horn 45mm-50mm    $45.00
88      2       Air horn 47mm-50mm    $48.00
88     2       Air horn 50mm-35mm    $70.00
-----------------------------------------------------

89      8       Spring washer 40mm, 45mm $.90
90      8       Nut 40mm, 45mm         $1.00
91   2        Set screw             $2.40
92      2       Set screw             $2.40
93      2       Gasket venturi-50mm      $1.30
94      2       Aux. venturi- 50mm    $26.00
--------------------------------------------------------
95 　　      Sleeve
--------------------------------------------------------
96      1       Washer pump plug       $2.00
97      2       Pump adjust screw O-ring $1.80
98      2       Screw pump plug O-ring   $2.30
99      1       Screw plug O-ring       $2.00
100     1       Cold start cam O-ring     $2.00
101 2       Screw plug O-ring        $1.65
102     2       Idle screw washer        $2.25
103     2       Idle screw O-ring        $1.65
104     2       Lock washer           $3.00
105     1       Plate                $18.00
106     4       Gasket fiber           $1.50
---------------------------------------------------------
107     4       Nut        $3.50
107     4       Cap nut             $2.00
--------------------------------------------------------

108     1       Center return spring     $12.00
109     1       Center spring retainer     $12.00
